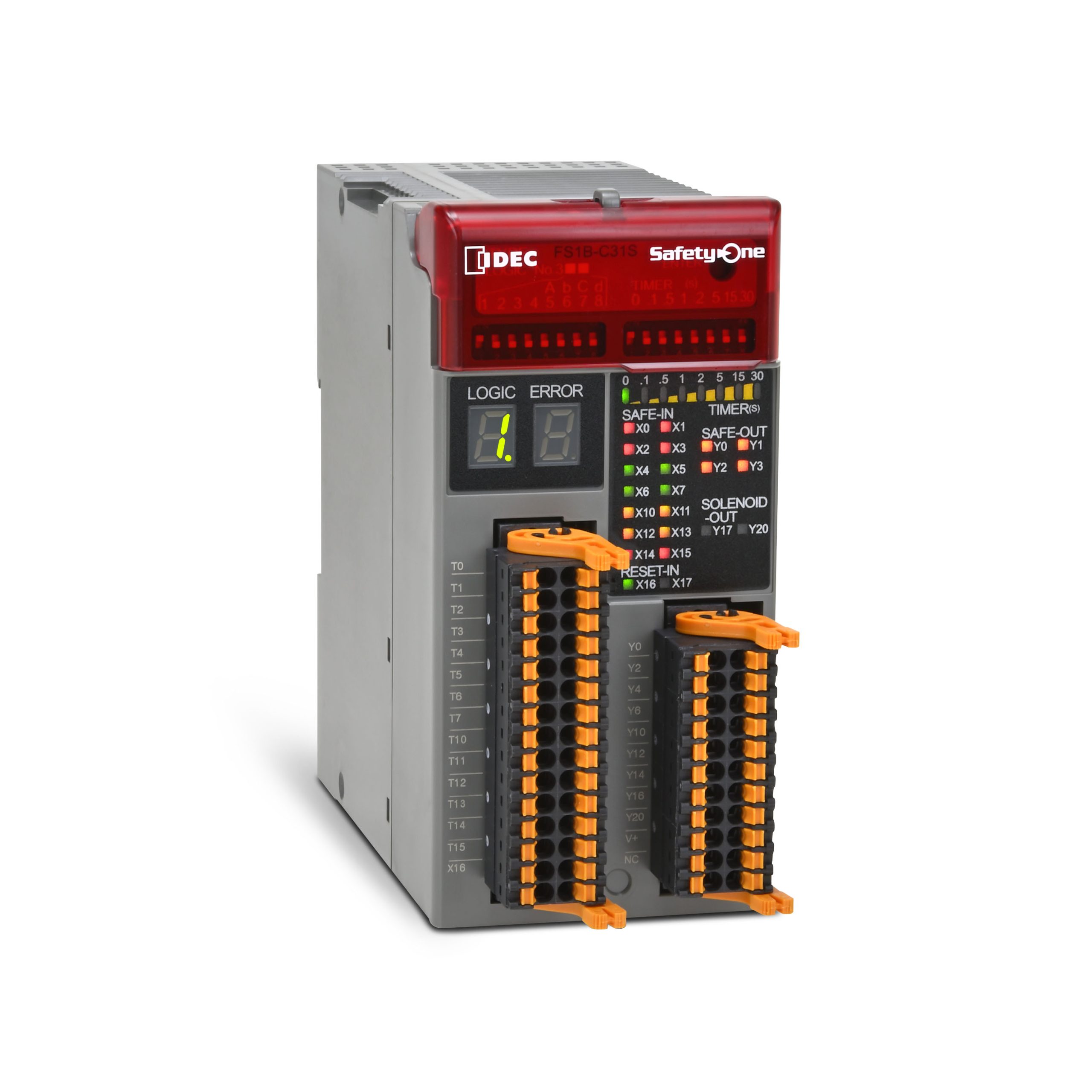

IDEC Corporation launched the FS1B Safety Controller with new additional features. With the new controller, designers can create streamlined machine safety systems.
Supplanting separate modules
The FS1B includes 12 universal discrete inputs (assignable as up to 6 safety channels). For safety devices, each dual-channel pair of inputs can be used in the default setting, or it can be changed as follows: direct opening input, dependent input, NO/NC input, or safety input II – each with or without synchronization monitoring. Also, individual inputs can be set to monitor non-safety devices, such as reset or other external signals, as part of the logic. Four safety outputs provide the capability to de-energize multiple equipment or systems.
Simple safety setup
Some examples of typical safety logic strategy options include partial stop, mode switching, switch/sensor combined, OR logic, and two-handed logic control. A web-based online simulator allows users to quickly select their application requirements, determine the best configuration, and obtain a circuit diagram output to document the settings.
The FS1B carries applicable IEC 61508, ISO 13849, UL508, and other approvals. Depending on the application, the safety performance facilitates SIL 3, PLe, Category 4. Industry standard 24V DC powers the controller, with a wide operating temperature range of -10 to +55 °C, and robust vibration resistance. It excels in any control panel location, whether on-board or external to the protected equipment.
Flexible safety for a multitude of applications
As part of a larger safety control system, the controller streamlines designs while improving safety. Typical industries and machines/equipment with these needs include injection molding, semiconductor manufacturing, metalworking, pharmaceuticals, food processing and packaging, robotics, automated guided vehicles (AGVs), autonomous mobile robots (AMRs), and others.
